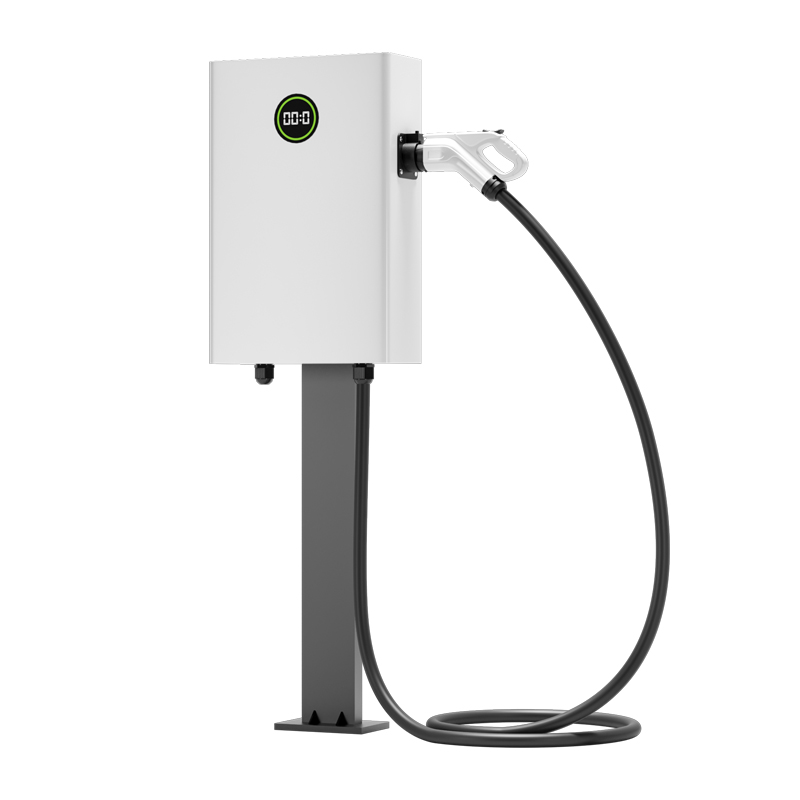

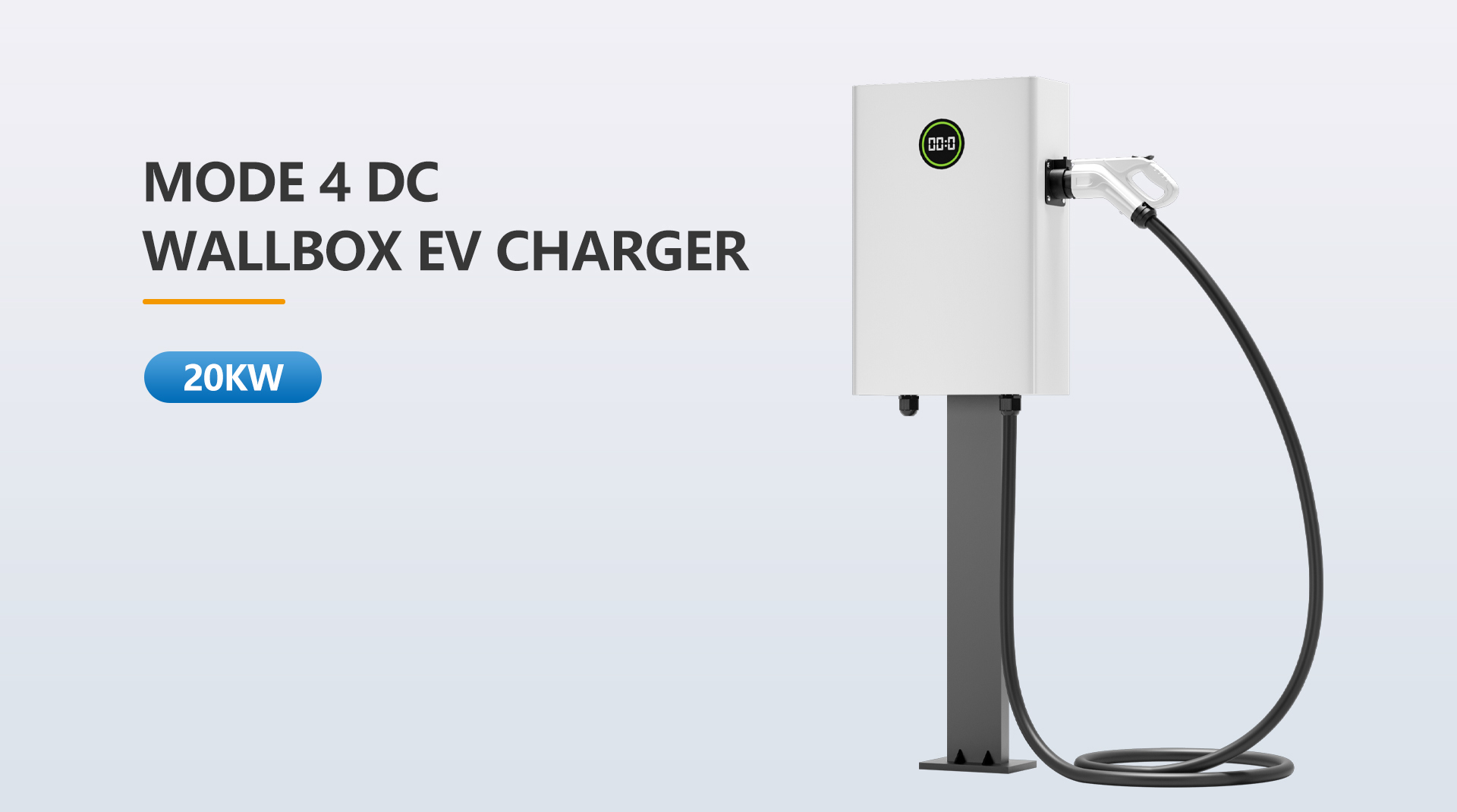

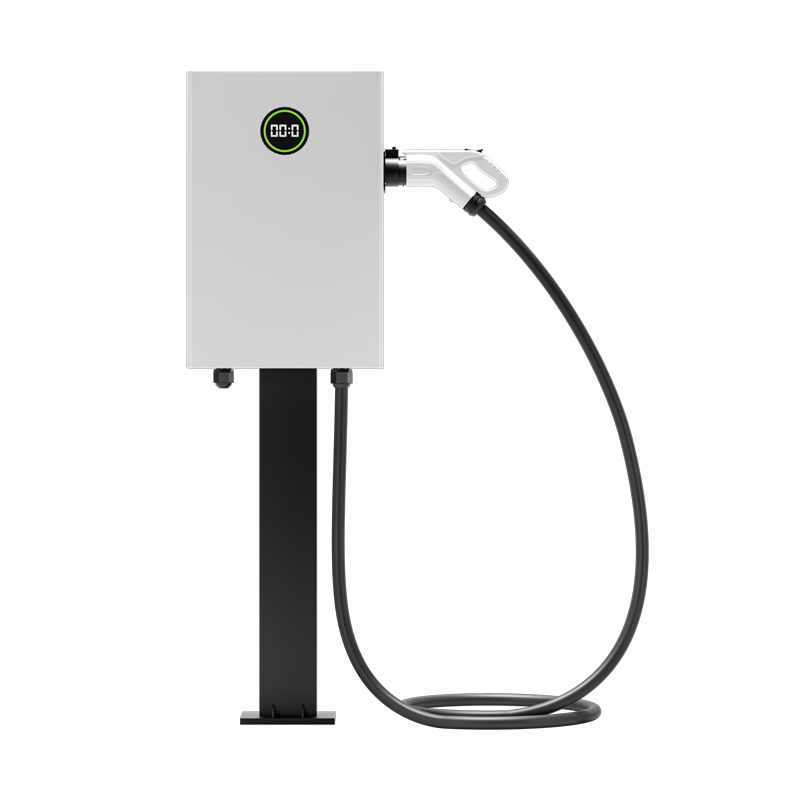

This product is mainly used for small battery new energy vehicle charging services, such as private cars, light trucks, etc. It has a

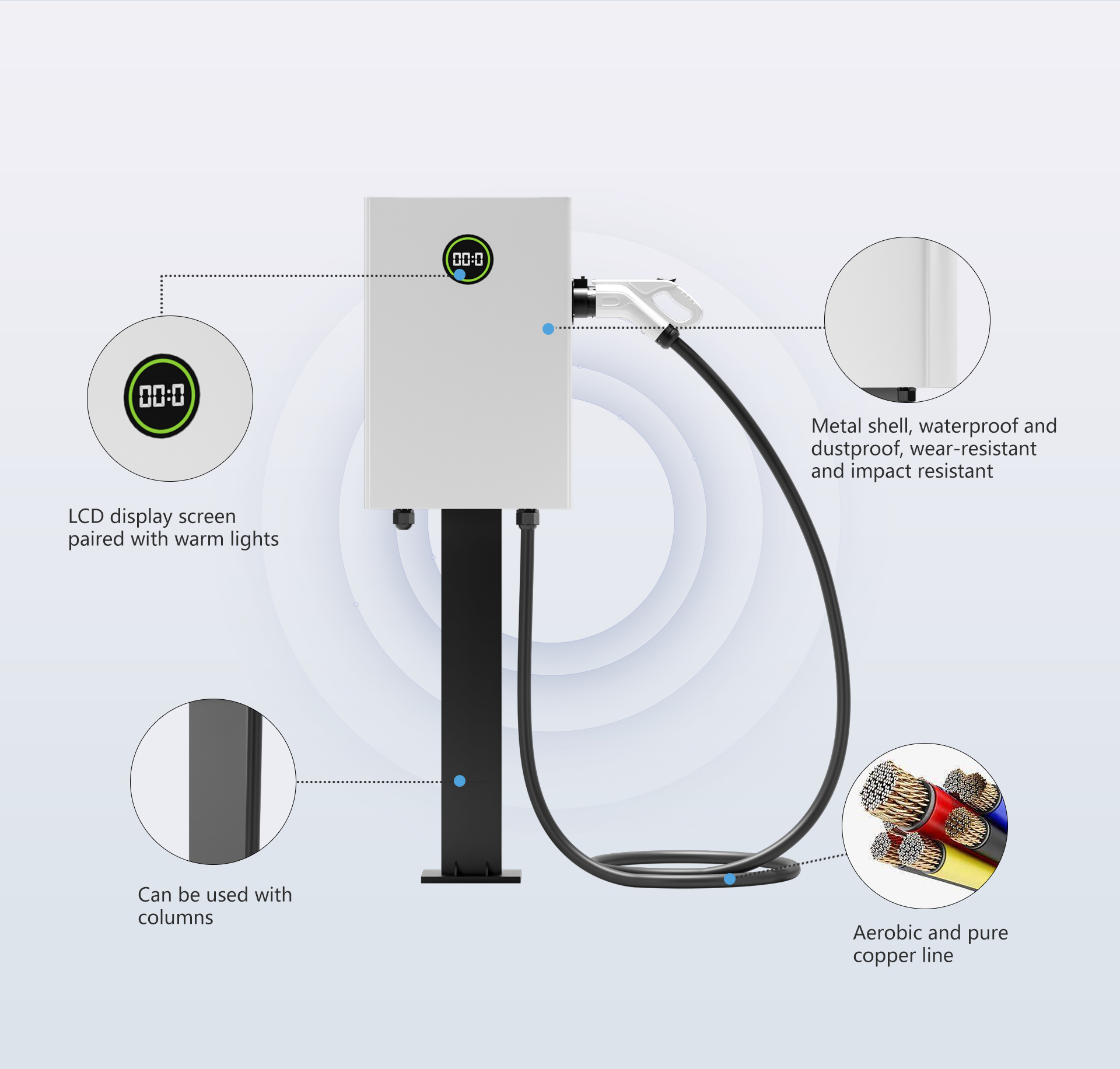

wide charging voltage range, a compact body, and convenient installation (supports two installation modes: pillar and wall mounted).
· One click operation, simple and concise, cost-effective, durable, safe and reliable
· Bluetooth paired VIN code, plug and play, exclusive and exclusive
· Control the charging process on your phone and view charging information
| Power Specification | |
| power | 20kw |
| Input voltage | 380VAC± 15%(323 ～ 437VAC) |
| Input Hz | 50Hz± 10% |
| Output voltage | 200 ～ 750VDC |
| Constant power range | 450 ～ 750VDC |
| Output current | 0 ～ 44.4A |
| Power factor | 0.99 (full load) |
| Peak Efficiency | 93% |
| Reference standards | GB/T 20234.1—2015、 GB/T 20234.3—2015、 GB/T 27930— 2015、 GB/T 18487.1—2015、 NB/T 33001—2018 |
| Mechanical | |
| Dimension | 630mm*393mm*145mm |
| Package | 834mm*488mm*375mm |
| weight | 33kg |
| Cable length | 5 meters/customize |
| Power Wiring | 5 Wire-L1,L2,L3,N,PE |
| Cooling Method | Forced air cooling |
| Interface & Control | |
| Installation Method | Wall-mounted |
| Intelligent control | Intelligent control Bluetooth upgrade |
| intelligent anti-theft | |
| appointment charging | |
| One click start stop | |
| communication interface | Bluetooth or 4G |
| Protection | |
| IP Grade | IP54 |
| Under Voltage Protection, | Over Voltage Protection |
| Short Circuit Protection | Over Load Protection |
| Ground Protection | Earth Leakage Protection |
| Surge Protection | Over-temp Protection |
| Double insulation for electric shock protection | |
| Environmental | |
| Operation temperature | ‘-30ºC~+50ºC |
| Operating humidity | 5%<95% |
| Acoustic noise | <65dB |
| Altitude | <2000m |
| atmospheric pressure | 70 ～ 106KPa |
| application environment | Large shopping malls, office buildings, residential communities, etc., as well as ground and underground parking lots |
