· Fashion is small, easy to store, carried with the car, and goes out of the car
· Anti -theft design, ABS+PC flame retardant material, constant current output, not easy to get hot, stable charging, real -time intelligent temperature control
·Insert and play, good compatibility, and adapt to mainstream models on the market
·Large energy, large energy, quickly solve charging anxiety
| Power Specification | |||||
| Power | 3.5kw | 3.5kw | 7kw | 7kw | 11kw |
| Input max current | 16A | 16A | 32A | 32A | 16A |
| Voltage | 110-220V±15% | 110-220V±15% | 110-220V±15% | 110-220V±15% | 380V±15% |
| 1-phase | 1-phase | 1-phase | 1-phase | 3-phaseS | |
| Rated Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Adjustable output Current | / | 8A/10A/13A/16A | / | 8A/10A/13/16A/32A | 8A/10A/13A/16A |
| Appointment Charging | No | Yes | No | Yes | Yes |
| Mechanical | |||||
| Connector Type | GB/T or type 2(IEC 63196-2) | ||||
| Cable | 5m(4.8 meters visible) or customized | ||||
| Input plug | CEEM NEMA plug, UK plug, Schuko plug, or AU plug | ||||
| Connector Mechanical Operating Life | ≥10000 times | ||||
| Dimension | |||||
| User Interface& Control | |||||
| Charging Control(Optional) | Plug and Play, | ||||

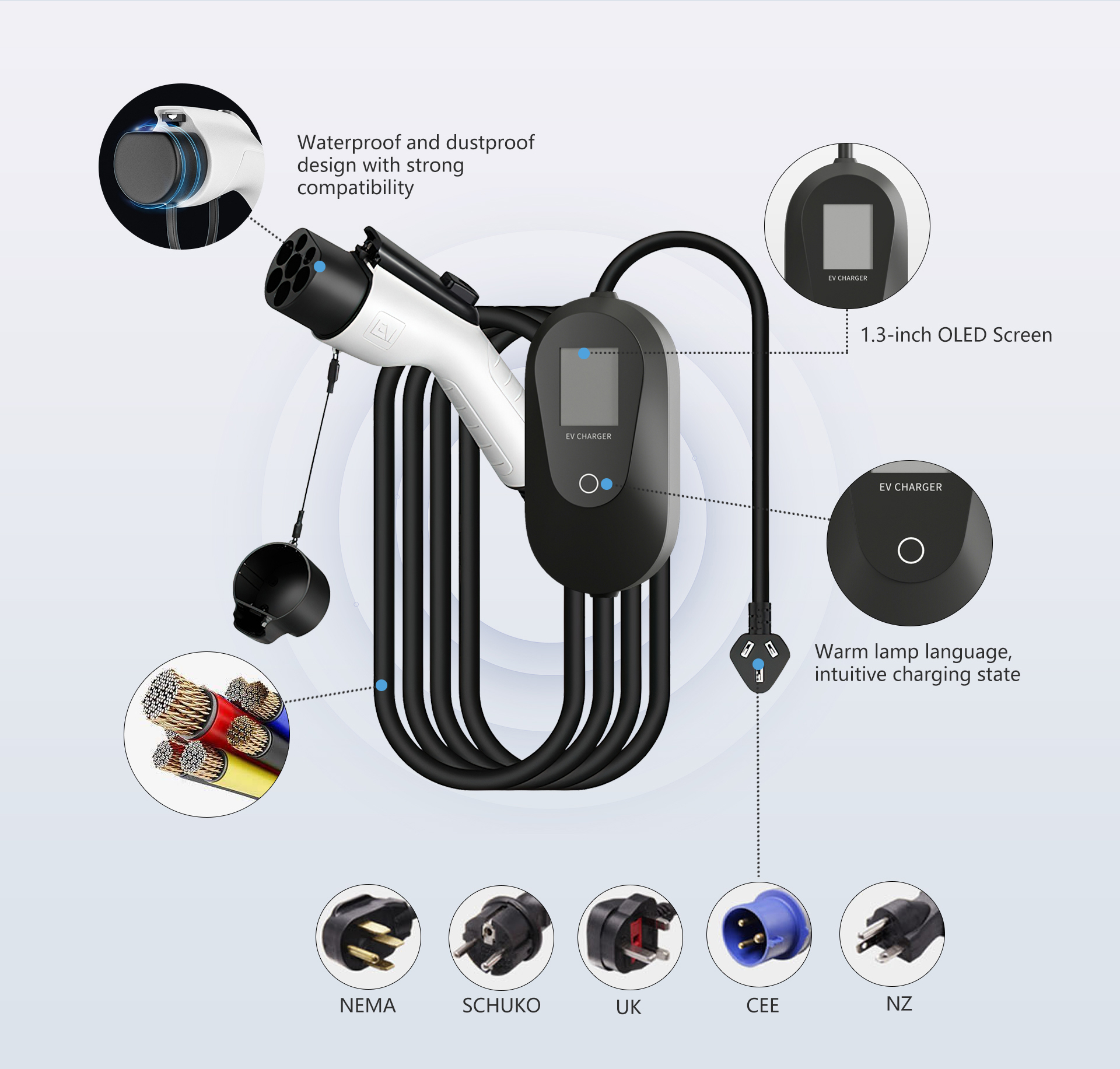

| Display Screen | 1.3-inch OLED Screen | ||||
| Indicators | 3 LED indicators-Power/ Charging/ Fault | ||||
| Environmental | |||||
| Operating Temperature | -30 to 55℃(-22 to 131℉）ambient | ||||
| Operating Humidity | Up to 95% non-condensing | ||||
| Altitude | ≤2000m | ||||
| Cooling Method | Natural Cooling | ||||
| Protection | |||||
| IP degree | IP55 | ||||
| Under Voltage Protection | Yes | ||||
| Short Circuit Protection | Yes | ||||
| Ground Protection | Yes | ||||
| Surge Protection | Yes | ||||
| Over Voltage Protection | Yes | ||||
| Over Load Protection | Yes | ||||
| Earth Leakage Protection | Yes | ||||
| Over-temp Protection | Yes | ||||
