· CAN/RS485/Ethernet/4G
· Load balance
· Platform docking

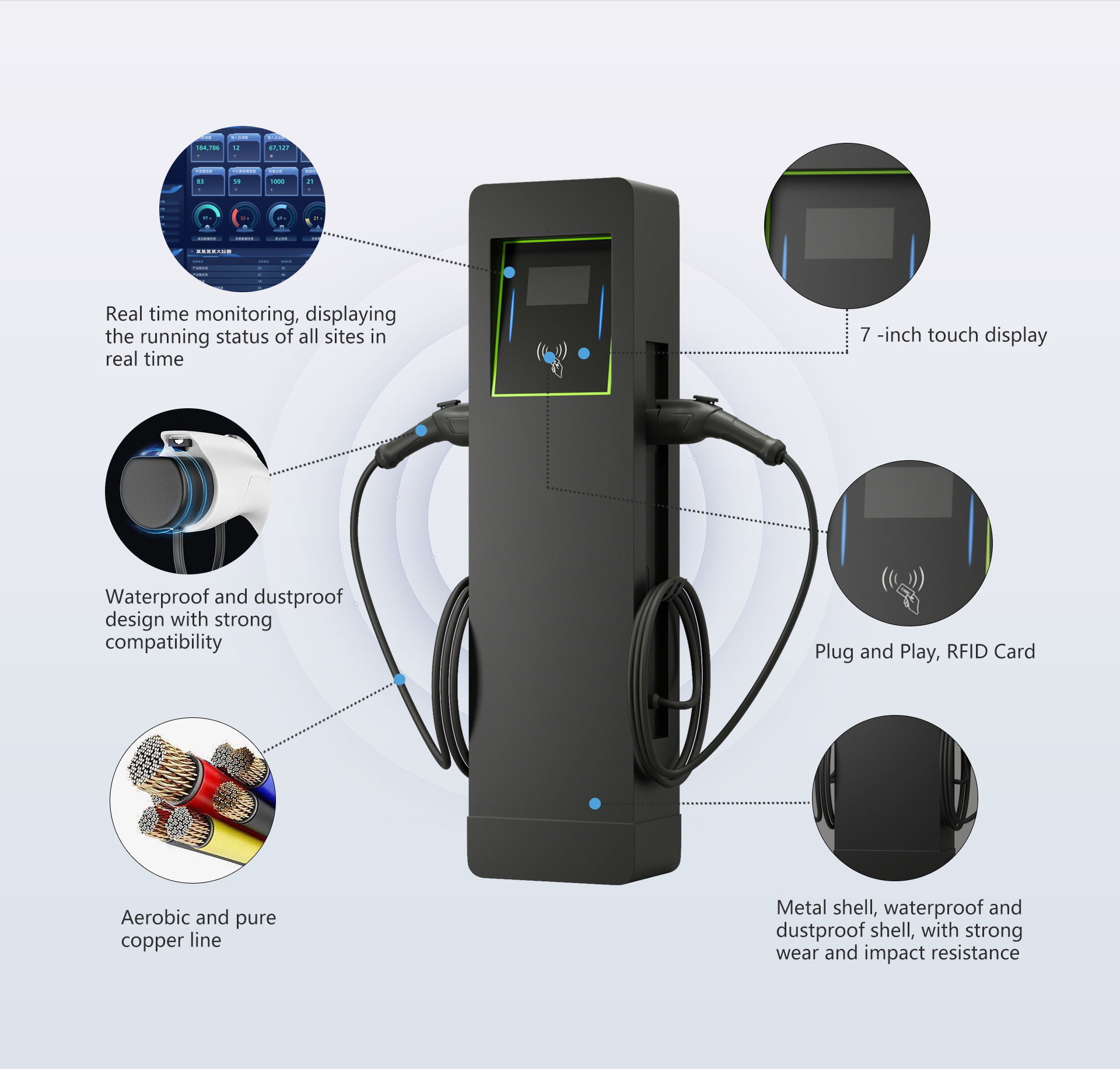

·7 -inch touch display

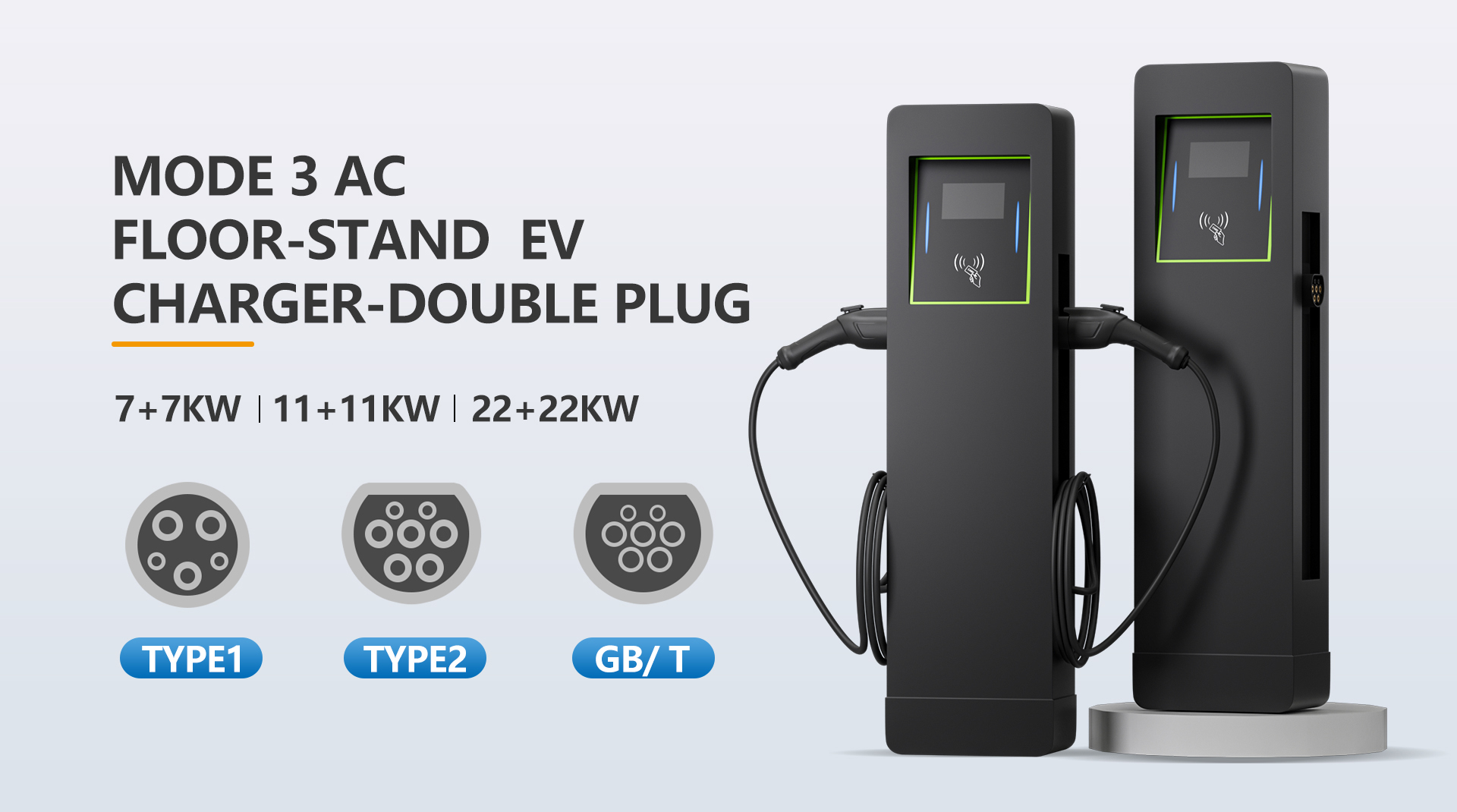

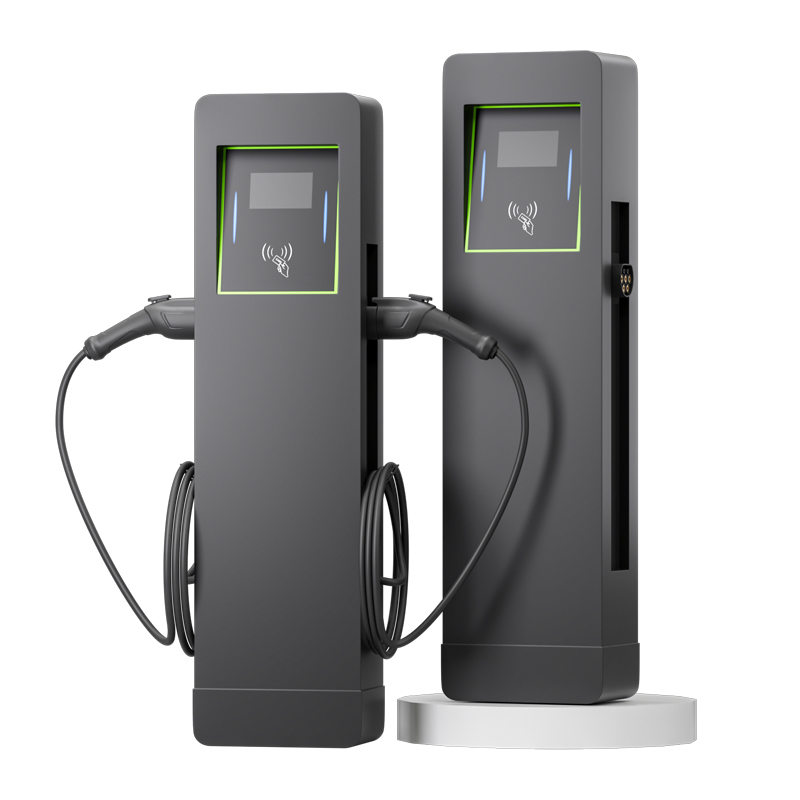

·One cabinet double gun, high cost performance, effectively reduce costs
· Real -time monitoring: The status information uploaded by the equipment such as charging piles is displayed in the monitoring interface, and the operating status of all sites is clear at a glance
· Anti -theft power design: Support vehicle electronic lock function, after parking and charging the car, the vehicle automatically locks the gun head
| Power Specification | |||
| NO. | ACSN2-14LD | ACSN2-22LD2 | ACSN2-44LD |
| AC Power Input Rating | 1-phase | 3-phase | |
| 110V-220V±15% | 380V±15% | 380V±15% | |
| AC Power Output Rating | 7+7KW / 32A+32A | 11+11kw / 16A+16A | 22+22kw / 32A+32A |
| Rated Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Required Service Panel Breaker (Branch Breaker) | Delicated Dual Pole | Delicated 3-Pole | Delicated 3-Pole |
| 80A(64A station) | 40A（32A） | 80A(64A station) | |
| Power Wiring | 3 Wire-L1,N,PE | 5 Wire-L1,L2,L3,N,PE | 5 Wire-L1,L2,L3,N,PE |

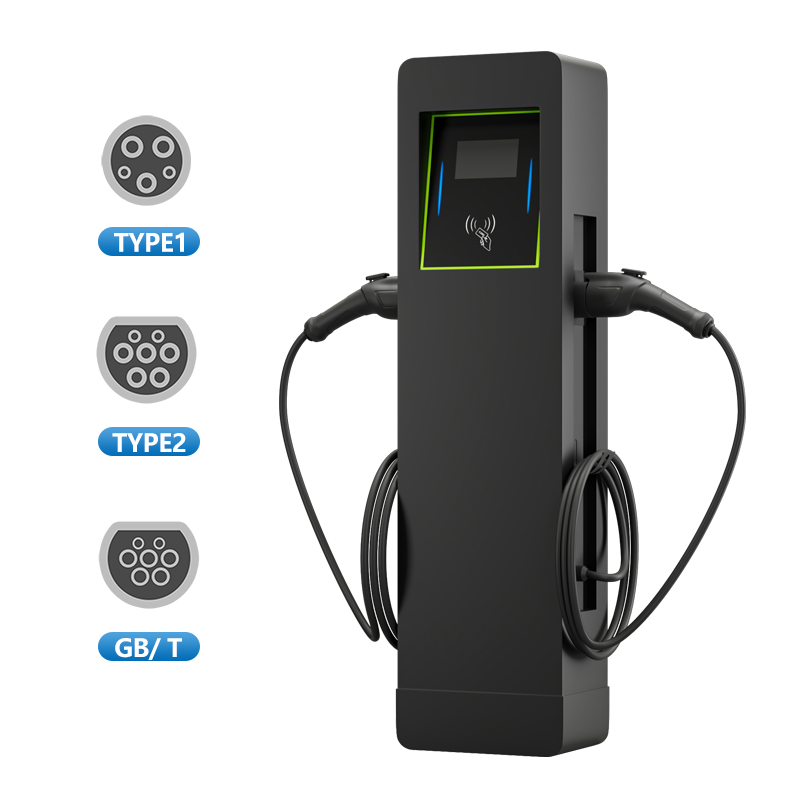

| Connector Type | IEC 62196-2(Type 2) or GB/T | ||
| Dual-Guns | |||
| Charging Cable Length | Doujble socket or double 5m cable(Customize Length) | ||
| Connector Mechanical Operating Life | ≥10000 times | ||
| User Interface & Control | |||
| Charging Control | Plug and Play, RFID Card | ||
| Display Screen | 4.3-inch LCD touch screen | ||
| External Communication | WIFI | ||
| LAN(RJ-45) | |||
| 4G(Optional) | |||
| OCPP Protocol(Optional) | OCPP 1.6J | ||
| Environmental | |||
| Storage Temperature | -40 to 75℃(-40 to 167℉）ambient | ||
| Operating Temperature | -30 to 50℃(-22 to 131℉）ambient | ||
| Operating Humidity | Up to 95% non-condensing | ||
| Altitude | ≤2000m | ||
| Cooling Method | Natural Cooling | ||
| Protection | |||
| Protection Ratings | IP55 | ||
| Over Voltage Protection | Yes | ||
| Over Load Protection | Yes | ||
| Earth Leakage Protection | Yes | ||
| Over-temp Protection | Yes | ||
| Type A RCD Built- in (Type B optional) | Yes | ||
| Under Voltage Protection | Yes | ||
| Short Circuit Protection | Yes | ||
| Ground Protection | Yes | ||
| Surge Protection | Yes | ||
