· Built -in Ethernet, Bluetooth, WIFI, and Honeycomb are compatible with OCPP
· Foreign communication protocol supports RS232 and CAN, which is convenient for the national standard communication
pile to quickly access the OCPP platform
· Built -in RFID card support identity recognition and permissions management (switching, plug -in, charging and
swiping card charging)
· ODM custom logo, according to customer needs
· Smart charging: load balancing
· Concentrated control, unified management, realizing peak -cutting valley, and reducing the impact on the grid.
Increase power factor
| Power Specification | |||

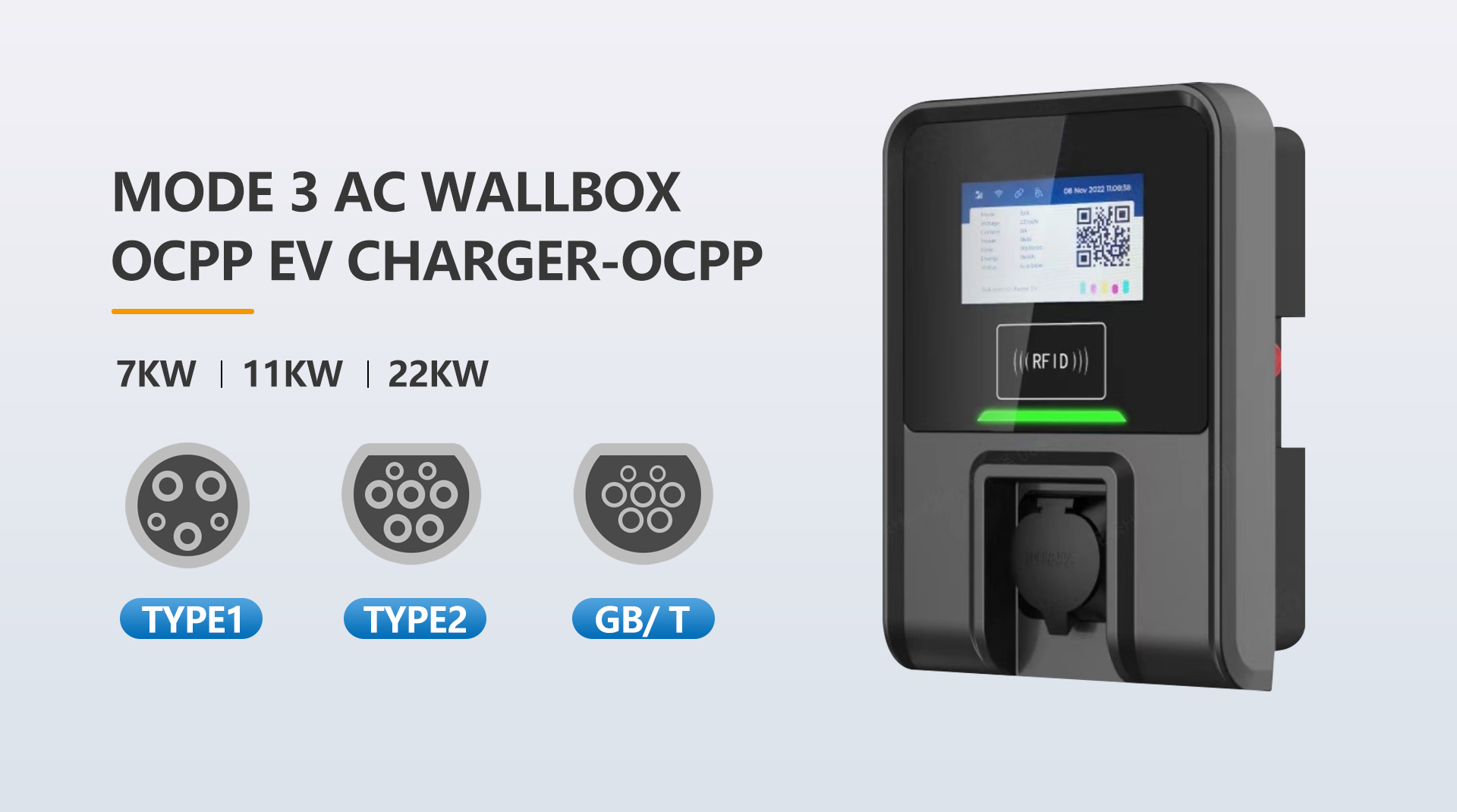

| Power | 7kw | 11kw | 22KW |
| Input max current | 32A | 16A | 32A |
| Voltage | 220V±15% | 400V±15% | 400V±15% |
| Rated Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Power Wiring | 3 Wire-L1,N,PE | 5 Wire-L1,L2,L3,N,PE | 5 Wire-L1,L2,L3,N,PE |
| Mechanical | |||

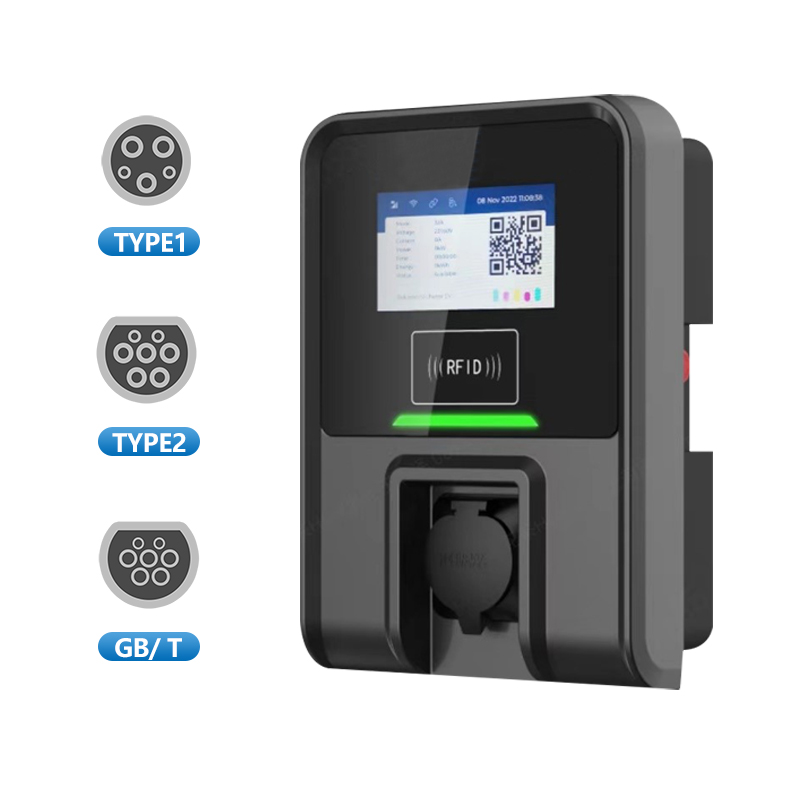

| Connector Type | GB/T or type 2(IEC 63196-2) | ||
| Cable | 5m(4.8 meters visible) or customized | ||
| Connector Mechanical Operating Life | ≥10000 times | ||
| User Interface& Control | |||
| Charging Control | Plug and Play, RFID Card | ||
| OCPP Protocol | OCPP1.6J | ||
| External Communication | Wi-Fi | ||
| 4G(Optional) | |||
| LAN(RJ-45) | |||
| Environmental | |||
| Storage Temperature | -40 to 75℃(-40 to 167℉）ambient | ||
| Operating Temperature | -30 to 55℃(-22 to 131℉）ambient | ||
| Operating Humidity | Up to 95% non-condensing | ||
| Altitude | ≤2000m | ||
| Cooling Method | Natural Cooling | ||
| Protection | |||
| IP degree | IP55 | ||
| Type A RCD Built- in (Type B optional) | Yes | ||
| Under Voltage Protection | Yes | ||
| Short Circuit Protection | Yes | ||
| Ground Protection | Yes | ||
| Surge Protection | Yes | ||
| Over Voltage Protection | Yes | ||
| Over Load Protection | Yes | ||
| Earth Leakage Protection | Yes | ||
| Over-temp Protection | Yes | ||
