· Bluetoothless charging ·Automatic, timing, fixed fee, quantitative, appointment
· Share charging increase income · Smart display charging data
· 4G/Bluetooth dual mode · Intelligent temperature control
· Time to make an appointment, share charging · Remote upgrade
· Ground · Load management, orderly charging
· Ethernet, 4G, Bluetooth, WIFI (option) reservation charging
| Power Specification | |||
| Power | 7kw | 11kw | 22KW |
| Input max current | 32A | 16A | 32A |
| Voltage | 220V±15% | 400V±15% | 400V±15% |
| Rated Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Power Wiring | 3 Wire-L1,N,PE | 5 Wire-L1,L2,L3,N,PE | 5 Wire-L1,L2,L3,N,PE |
| Mechanical | |||

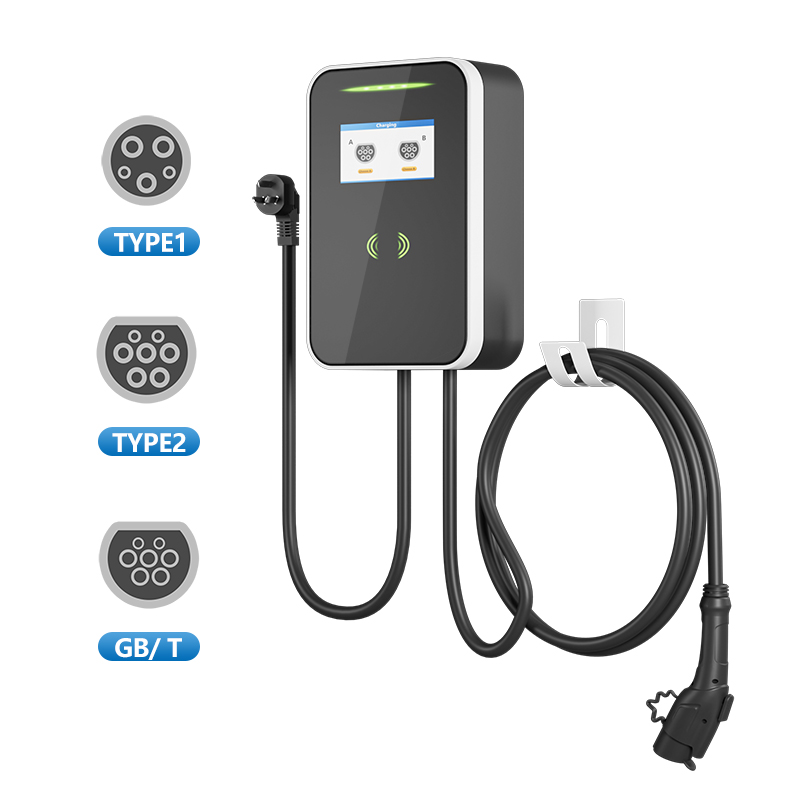

| Connector Type | GB/T or type 2(IEC 63196-2) | ||
| Cable | 5m(4.8 meters visible) or customized | ||
| Connector Mechanical Operating Life | ≥10000 times | ||
| User Interface& Control | |||
| Charging Control(Optional) | Plug and Play, | ||
| RFID Card, | |||
| APP(The app could Remote real-time monitoring, remote control, appointment for charging, adjustment of current, charging records） | |||
| External Communication | Wi-Fi(Optional) | ||
| 4G(Optional) | |||
| Bluetooth | |||
| Other functions | Dynamic load balancing | ||
| PEN | |||
| Environmental | |||
| Storage Temperature | -40 to 75℃(-40 to 167℉）ambient | ||
| Operating Temperature | -30 to 55℃(-22 to 131℉）ambient | ||
| Operating Humidity | Up to 95% non-condensing | ||
| Altitude | ≤2000m | ||
| Cooling Method | Natural Cooling | ||
| Protection | |||
| IP degree | IP55 | ||
| Type A RCD Built- in (Type B optional) | Yes | ||
| Under Voltage Protection | Yes | ||
| Short Circuit Protection | Yes | ||
| Ground Protection | Yes | ||
| Surge Protection | Yes | ||
| Over Voltage Protection | Yes | ||
| Over Load Protection | Yes | ||
| Earth Leakage Protection | Yes | ||
| Over-temp Protection | Yes | ||
