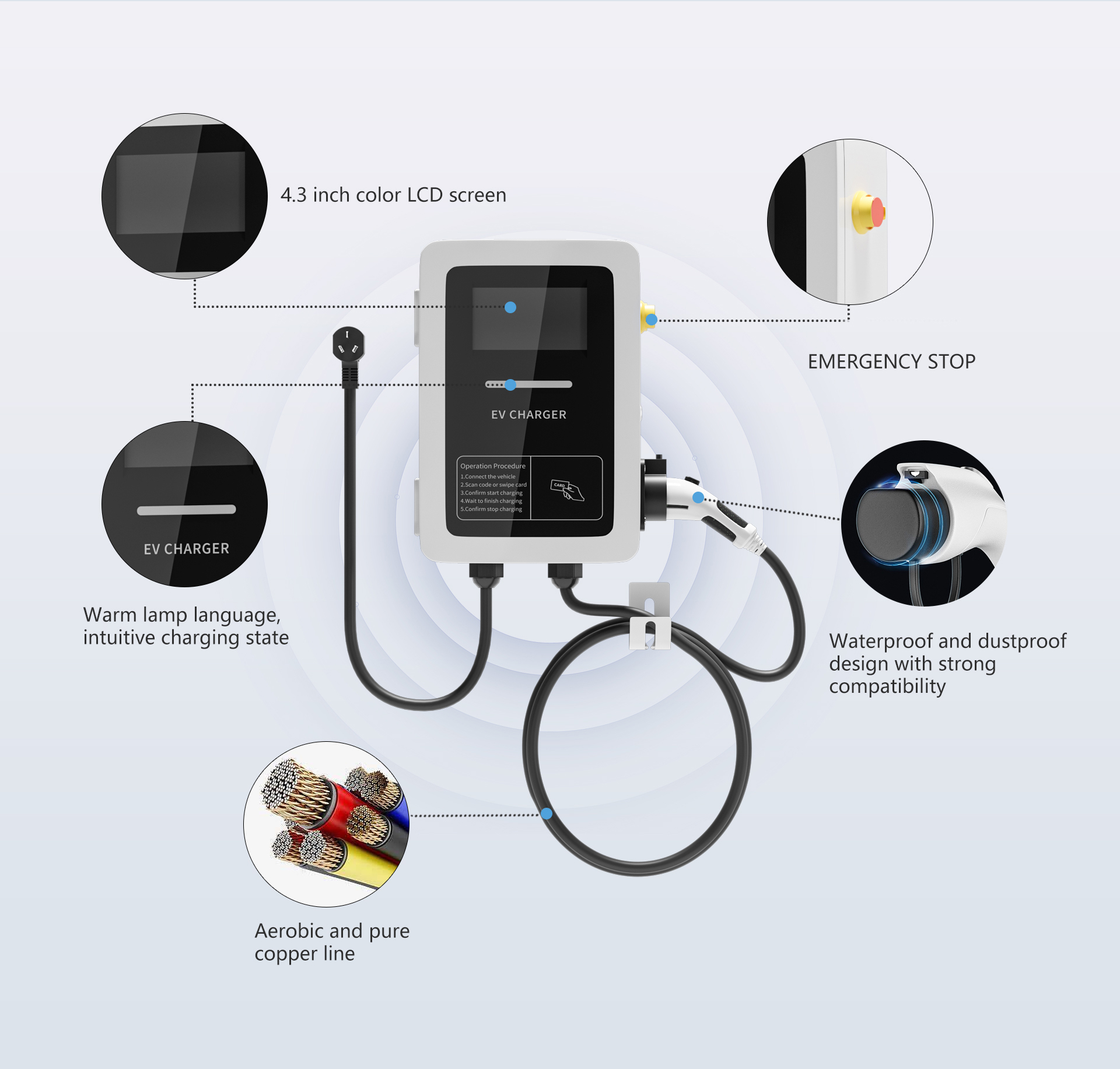

· 4.3 inch color LCD screen · Integrated installation
· Swipe card control · Independent deployment
· Small size, easy to install, easy to maintain · Swipe card lock
· Easy installation, not occupying space · Swipe card unlock
| Power Specification | ||||

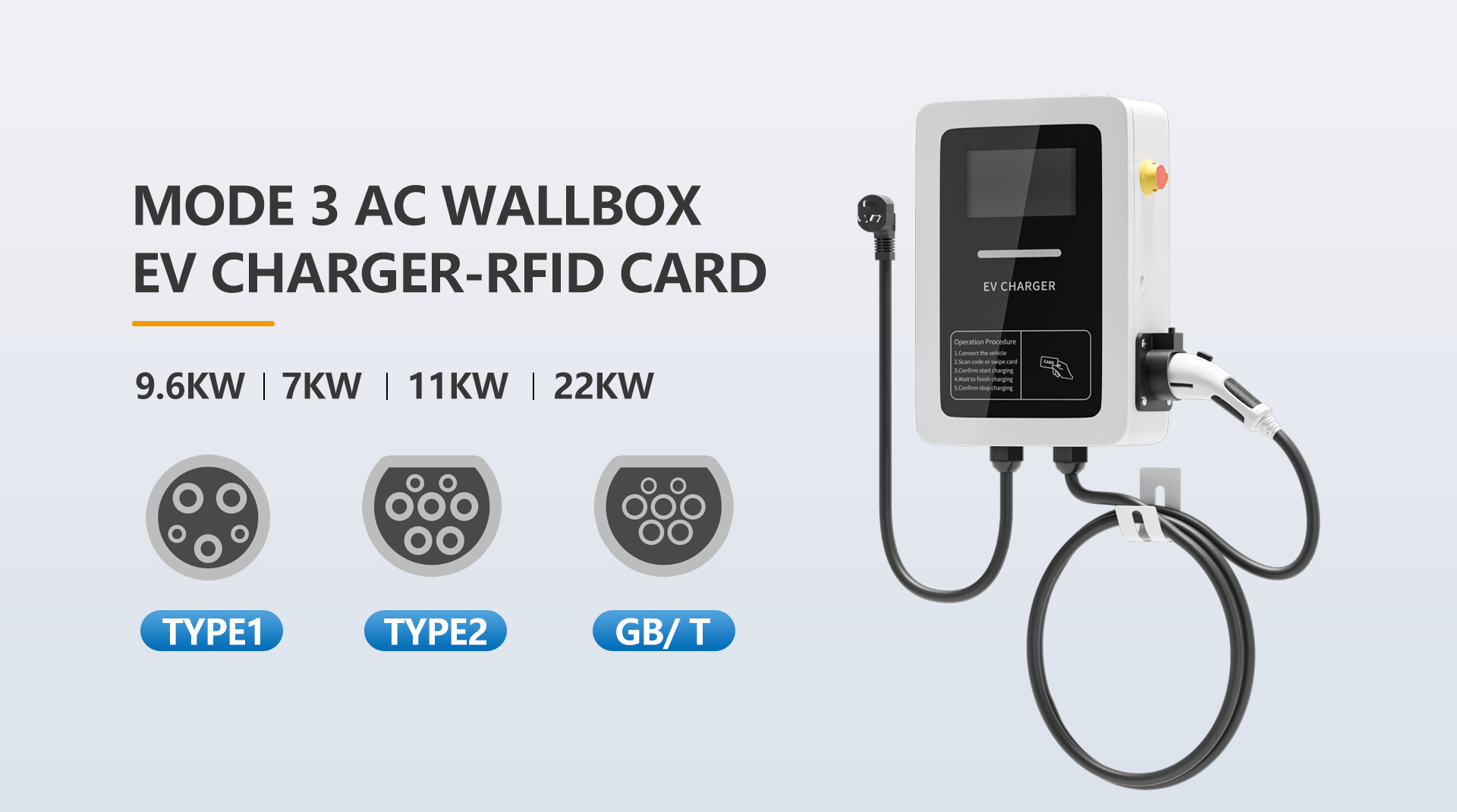

| Power | 9.6KW | 7kw | 11kw | 22KW |
| Input current | 40A | 32A | 16A | 32A |
| Voltage | 110-220V±15% | 110-220V±15% | 400V±15% | 400V±15% |
| Rated Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Power Wiring | 3 Wire-L1,L2,GROUND | 3 Wire-L1,N,PE | 5 Wire-L1,L2,L3,N,PE | 5 Wire-L1,L2,L3,N,PE |
| Mechanical | ||||

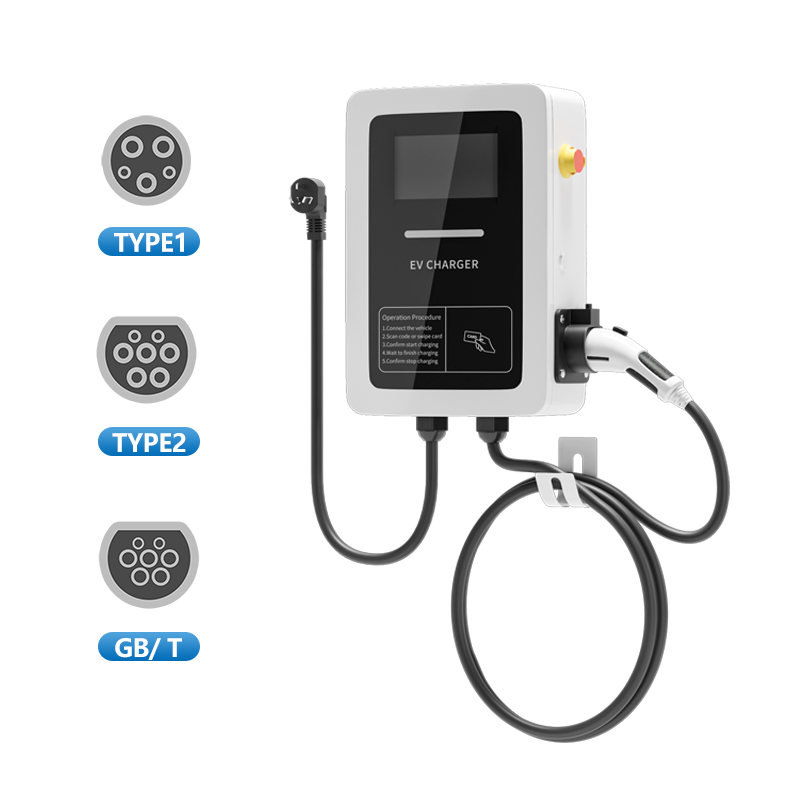

| Connector Type | TYPE 1 | GB/T or type 2(IEC 63196-2) | ||
| Cable | 5m(4.8 meters visible) or customized | |||
| Connector Mechanical Operating Life ≥10000 times | ||||
| Screen | 4.3 inch | |||
| Charging Control(Optional) | RFID Card, | |||
| Environmental | ||||
| Storage Temperature | -40 to 75℃(-40 to 167℉）ambient | |||
| Operating Temperature | -30 to 55℃(-22 to 131℉）ambient | |||
| Operating Humidity | Up to 95% non-condensing | |||
| Altitude | ≤2000m | |||
| Cooling Method | Natural Cooling | |||
| Protection | ||||
| IP degree | IP55 | |||
| Type A RCD Built- in | Yes (Type B optional) | |||
| Under Voltage Protection | Yes | |||
| Short Circuit Protection | Yes | |||
| Ground Protection | Yes | |||
| Surge Protection | Yes | |||
| Over Voltage Protection | Yes | |||
| Over Load Protection | Yes | |||
| Earth Leakage Protection | Yes | |||
| Over-temp Protection | Yes | |||
